$1,680.00The Story

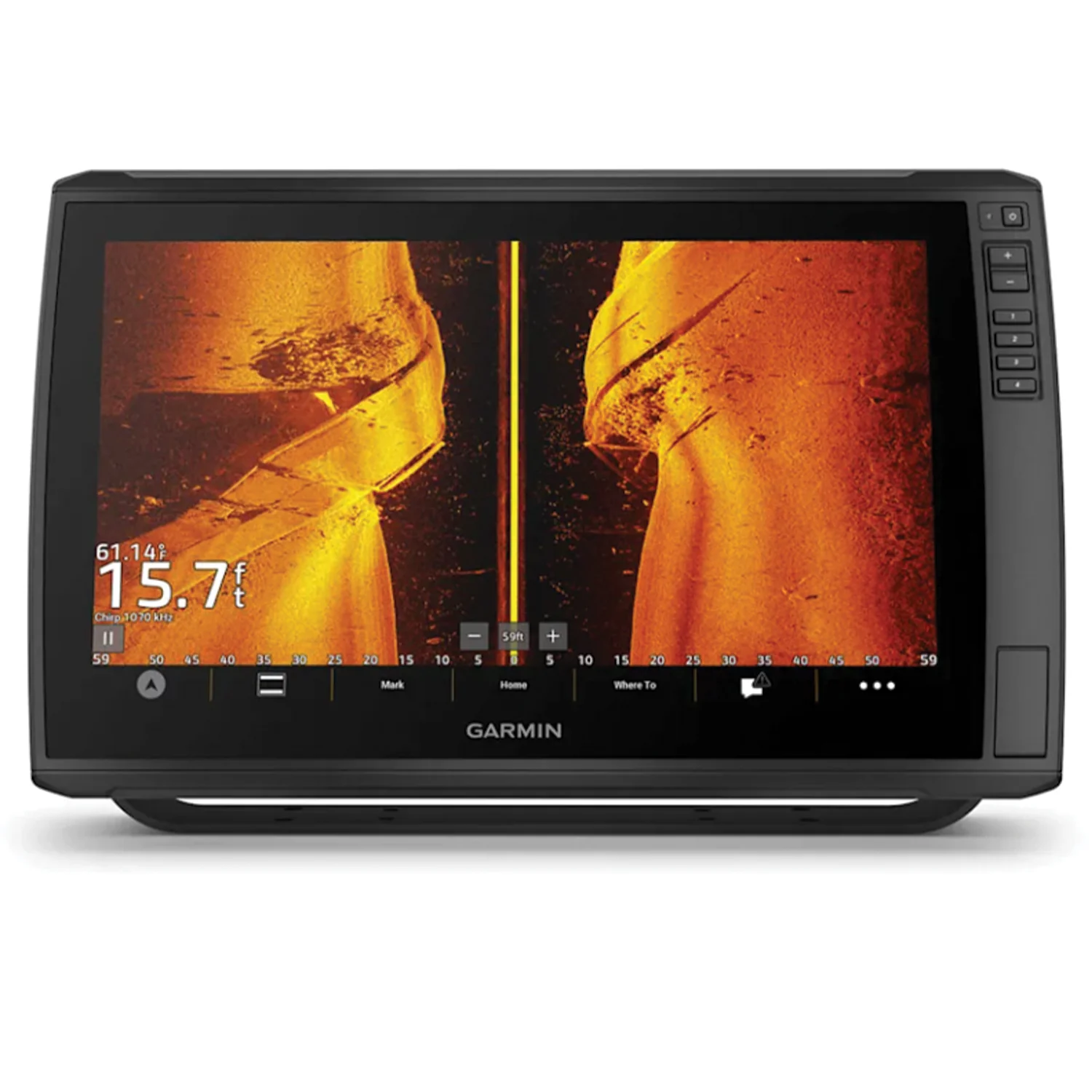

SEE BIGGER CATCHES ON A BIGGER SCREEN
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
| Dimension | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
|---|---|
| Weight |
9.5 lbs (4.31 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | FHD, IPS |
| Display Size | 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD™ cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (see Additional) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Tide tables | yes (see Additional) |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
