$455.00
Original: $1,299.99

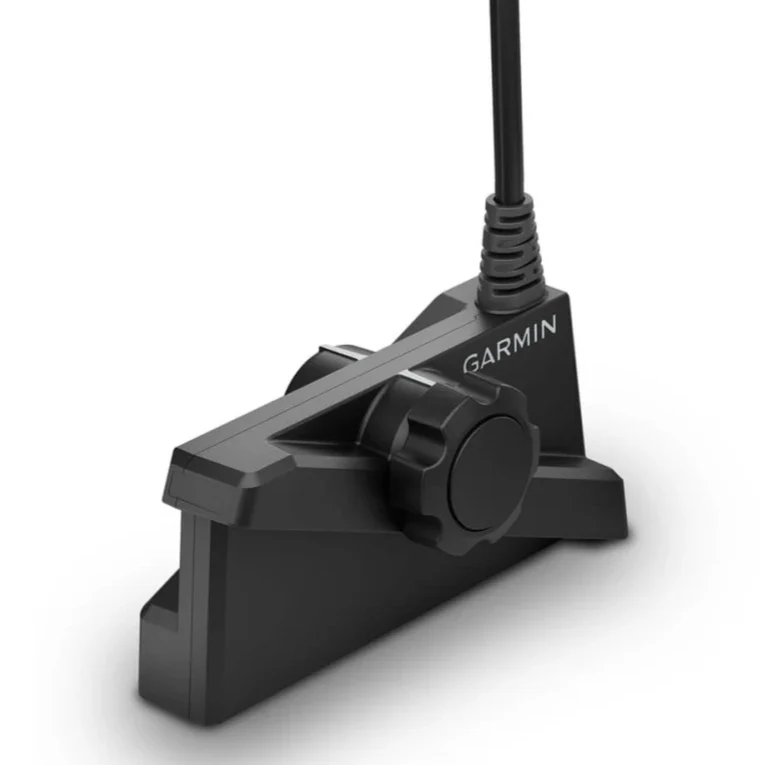

-65%Garmin Livescope Plus LVS34 (Transducer ONLY) - 010-02706-10—
$1,299.99
$455.00The Story
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
- LiveScope Plus LVS34 transducer
- Perspective mount (LiveScope Plus LVS34 Transducer Only)
- Trolling motor barrel mount
- Shaft mount
- Documentation
General |
|
| DIMENSION | 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm) |
|---|---|
| WEIGHT |
2.25 lbs (1.02 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE | Operating: 0 C to 40 C
|
Sonar Features & Specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
| SONAR TYPE | Live |
| TARGET SEPARATION @100' | 14" |
| PERSPECTIVE MODE MOUNT INCLUDED | |
Connections |
|
| GARMIN MARINE NETWORK PORTS |
1 (small connector) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4" (0.1 m) |
